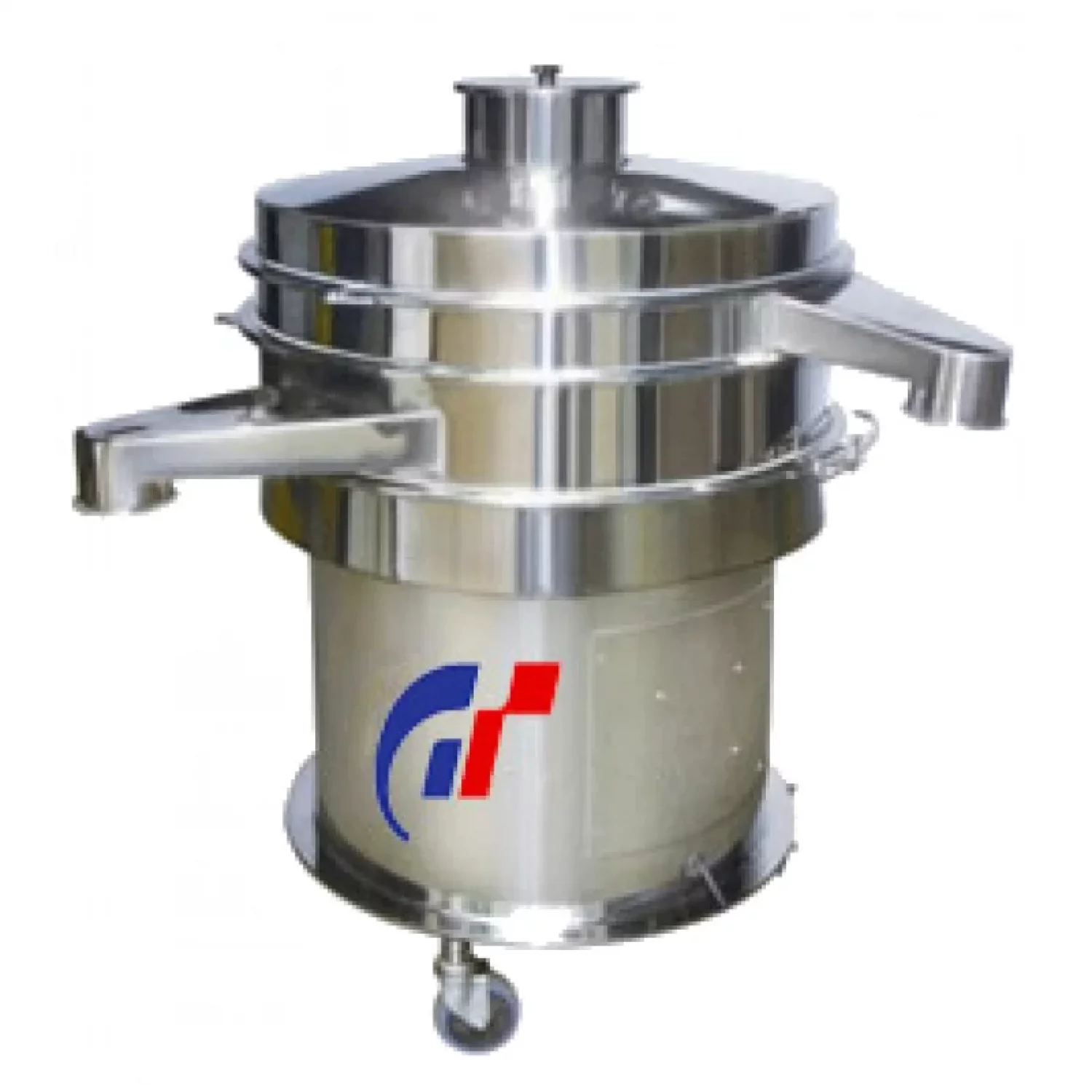

Ultrasonic Vibro Sifter

AvailabilityIn Stock
CategoryVibro Sifter
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Ultrasonic Vibro Sifter Details

Ganesh,is leading Ultrasonic Vibro sifter Exporter Our system enable you to sieve your powders with more accuracy and correctness and allowing more accurate separation. By this method you can improve the quality of your product and its value. Our ultrasonic system is designed in such a way that it can be fitted with any new or existing vibro separator. One can increase the product quality and output by Ultrasonic Vibro sifter

Technical Specification

ModelGT-SIF-30GT-SIF-36
ScreensSS 316SS 316
Screen Dia.752 mm.914 mm.
Capacity/Hour *30 to 300 Kgs.40 to 400 Kgs.
Charging height1050 mm without Lid1050 mm without Lid
Discharging height670 mm.670 mm.
Electric Motor0.5 HP / 1440 RPM / 3 Ph.1 HP / 1440 RPM / 3 Ph.
  • Ultrasonic Transducers ; TotallyEnClosed SS Body , Made from Special Piezo Ceramic Rings Which are Specially Design for Transducer for sieving appliction.
  • Ultrasonic generator ; latest Technology Mosfet based Compact with Digital Display Shows Ultrasonic Frequency, Power . One can vary Ultrasonic Frequency and Ultrasonic Power by Our Special Design Ultrasonic generator.
  • Mounting Arrangement ; We are providing you Special Cable and clamp for cable Entry from Vibrator
  • Ultrasonic Frequency ; 37 Khz +- 3 Khz
  • Ultrasonic Power ; 500 watts Average.
  • Circular SS ring willbe Provided On Grill, On This Ring, Transducer willbe Mounted.
